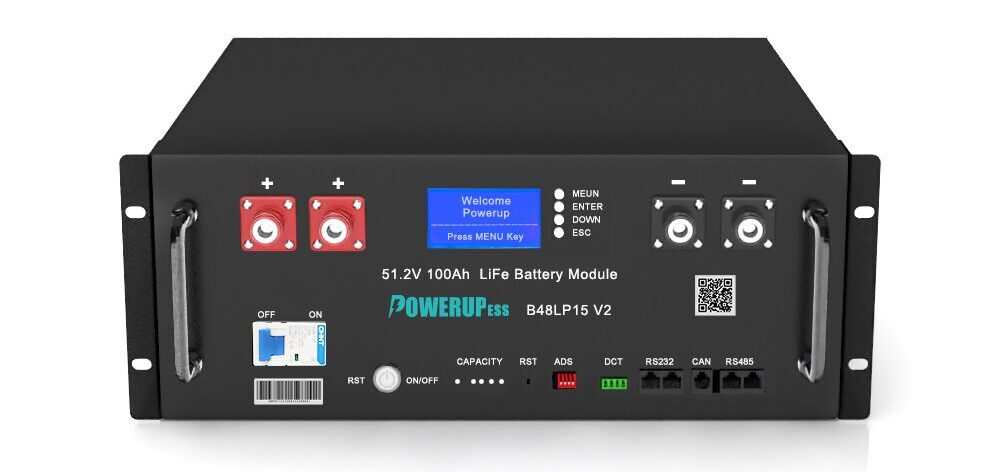

51.2V Lithium Iron Phosphate 100Ah 48v 4 U rack mounted battery
PowerUp ESS LiFePO4 48V 5.1kWh battery-5yr Warranty Rack/Floor Mount-
High quality energy storage system using Lithium Iron Phosphate
PowerUp ESS LiFePO4 48V 5.1kWh battery-5yr Warranty Rack/Floor Mount
POWERUPESS is a provider of high quality energy storage system using Lithium Iron Phosphate . Our current model is made with Grade-A UL Listed cells with a high quality and Reliable BMS. The integration (closed-loop-communication) of our product with other power electronics is seamless. .
Features and Benefits
High Cycle Life
2000-7000 cycles for effectively Locer total of ownership
Longer Service life
Low maintenance batteries with stable chemistry
Built in circuit protection
Battery management System(BMS) is incorporated agaist abuse
Battery Storage
upto 6 Months - Thanks to the extremely low self discharge rate and no risk of sulphation
Lightweight
Lithium Battery Provides more Wh/Kg while also being upto 1/3 of its weight SLA equivalent
Quick Recharge
Save time and increase productivity with less downtime thanks to superior charge/discharge efficency
Specifications
| ELECTRICAL PERFORMANCE | |
|---|---|
| Nominal Voltage | 51.2 V |
| Mean Operation Voltage | 49.5-50.5V |
| Nominal Capacity | 100 Ah |
| Energy | 5120 Wh |
| Communication | CAN 2.0 / RS232/ RS485 |
| Resistance | 85 Resistance ≤40 mΩ @ 50% SOC |
| CHARGE PERFORMANCE | |
|---|---|
| Recommended Charge Current | 20A (Charge time: ≈6hrs) |
| Recommended Charge Voltage | 53.2-54V |
| Charge Cut-Off Voltage (BMS) | 3.70±0.025 V/Cell (1sec) |
| Reconnect Voltage (BMS) | 3.45±0.02 V/Cell, 3.45±0.02 V/Cell |
| DISCHARGE PERFORMANCE | |
|---|---|
| Maximum Continuous Discharge Current | 100 A |
| Standard Discharge Current | 20 A |
| Discharge Cut-off Voltage | 40.5-42.5V |
| Discharge Cut-Off Voltage (BMS) | 2.75±0.02 V/Cell |
| Short Circuit Protection | ≤800 μs |
| COMPLIANCE | |
|---|---|
| Certifications | ROHS compliant UN38.3 (battery) UL1973 & IEC62619 (cells) |
| Shipping Classification | UN 3480, CLASS 9 |
| MECHANICAL SPECIFICATIONS | |
|---|---|
| Dimension (L x W x H) | 442mm X 430mm X 177 mm 17.4” x 16.9” x 7” |
| Approx. Weight | 47 kg (103.6 lbs.) |
| Terminal Type | M8 SCREW POST (FEMALE) |
| TEMPERATURE PERFORMANCE | |
|---|---|
| Discharge Temperature | -20 to 55°C (-4 to 131°F) |
| Charge Temperature | 0 to 45°C (32 to 113°F) |
| Storage Temperature | -10 to 35°C (14 to 131°F) |
| BMS High Temperature Cut-Off | 60±3°C (140±5.4°F), -5±2°C (23±3.6°F) |
| Reconnect Temperature | 55±3°C (131±5.4°F) |
| Reconnect Temperature | 0±2°C (32±3.6°F) |
| Uncategorized | |
|---|---|
| Maximum Charge Current | 100A (Charge time: ≈2hrs) |
| Charge Over Current Protection (BMS) | 110±5A |
| Balancing Voltage Threshold (BMS) | 3.45V/Cell |
